CNC Turning Service
CNC Turning manufacturing includes internal and external cylindrical surface machining, end surface turning machining, drilling machining, threading machining, complex shape and profile machining, and complex contour rotary surface, etc. Drills, reamers, taps, threading dies, knurling and CD texture tools can also be used on the CNC lathe for corresponding processing. It is the most widely used type of machine tool in mechanical manufacturing and repair factories.
DDPROTOTYPE is honored to provide high precision CNC turning services in our world-class factory. Our precision CNC turning service has unparalleled quality and accuracy, and is well-known and respected throughout the industry. We can ensure that every part produced can meet your requirements and even exceed your expectations. We have been working to improve our process by adding new advanced equipment and technology. With 20 years of CNC turning experience, our reputation for quality is constantly improving.
What is CNC turning?
CNC turning is mainly for some round or spherical parts, internal and external conical holes, and special internal and external threads, also available for drilling and knurling. The precision can be 0.005mm, follow to the surface roughness ISO 2632/1-1975 standards. Both engineering plastic and metal can be optional. Such as stainless steel, low carbon steel, copper, aluminum alloy, magnesium alloy, PEEK POM PA ABS PP PC PMMA PTFE.
Advantages of CNC Turning
1.Fast finish for round, spherical, shaft, conical parts.
2.Simple programming, just enter the G code parameters.
3.MOQ only one piece for customized part. Also available for mass production.
4.Cost saving and high efficiency.
5.High precision to 0.005mm. Surface roughness standards ISO 2632/1-1975.
6.Non-standard thread machining. eg. M3*70 pipe threading, conical threading, lens threading, special internal and external threading.
7.Various material: Stainless steel, low-carbon steel, copper, aluminum alloy, magnesium alloy, PEEK, POM, PA, ABS, PP, PC, PMMA, PTEF and so on.
8.Compared with CNC milling, it is more round and accuracy in round and spherical shape.
Advance Equipments of DDPROTOTYPE

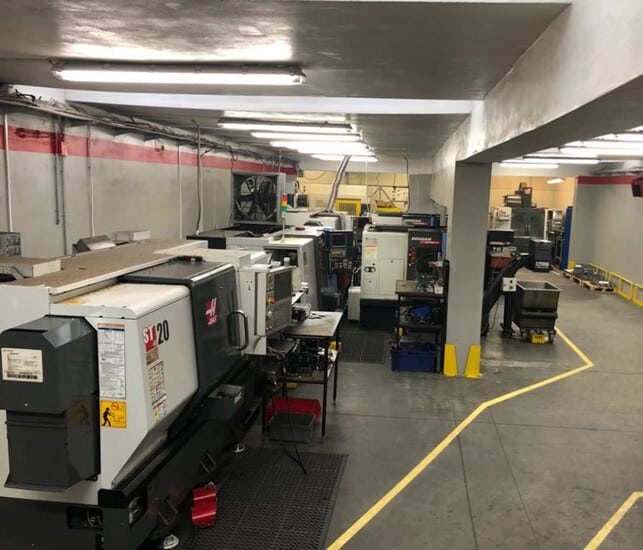

DDPROTOTYPE has passed ISO 9001:2015 Certification. We have more than 15 CNC lathes. Our CNC lathes are manufactured by industry experts, including Jingdiao,HAAS.These CNC lathes are hybrid machines, combining the best characteristics of lathes and milling machines, providing high quality processing services, so as to achieve higher efficiency and more complex geometry for your project.
CNC Turning Video | DDPROTOTYPE
Competitive Pricing
CNC turning combines with other CNC machining, low-volume manufacturing, prototype design and finishing services. Combining with China’s high efficiency and abundant materials, you can get 40%~70% lower cost quality parts than your competitors, while maintaining the quality you expect and deserve.
Technological process
We accept the following minimum and maximum part sizes:
Minimum diameter: 1.6 mm (1/16″) length: 3.2 mm (0.126″)
Maximum diameter: 152 mm (6″) length: 304 mm (12″).
Precision CNC Turning
We use a variety of precision CNC lathes to provide excellent versatility, fast and efficient production. DDPROTOTYPE precision CNC turning equipment is designed to provide high accuracy, strict tolerance and excellent consistency, suitable for complex prototyping. We have CNC lathes, using field tools in the same settings to perform secondary milling, to produce short processing time of the complete processing parts. Our 6-axis screw machine uses multiple real-time tools to complete precision CNC turning engineering with the highest efficiency.
Check Out Our Advanced Equipments >>>
CNC Turning Classification
Hard turning – A process designed to replace grinding processes used for hardening materials.
Grooving and end grooving – The process of cutting slots of predetermined depth to the side or face of the workpiece.
Drilling – Mainly used to remove materials from the workpiece from the inside. More advanced CNC lathes can stop the workpiece rotation, drilling or milling away from the center or cross center to the workpiece.
Boring – The process of expanding pre-drilling with a single point tool.
Reaming – The process of expanding pre-drilling with a multi-groove tool designed to cut tool diameters.
Our Capability
DDPROTOTYPE precision CNC machine tools enable us to provide a wide range of CNC turning services. We have precision CNC lathes, which are very suitable for R&D, prototype and short-term operation. We also have equipment specially designed for manufacturing highly complex parts. Our precision CNC lathes provide excellent repeatability for mass production. Whatever the scope of work, DDPROTOTYPE can do all this.
Our precision CNC turning equipment is programmed with G code software to ensure excellent quality and high accuracy, as well as excellent consistency of repetitive parts. This makes our precise CNC turning service very suitable for many industries that need to maintain precise tolerances. From medical and electronic, aerospace and defense industrial applications, our precision CNC turning services can meet the most stringent production requirements.
What advantages of working with us?
At DDPROTOTYPE, we have complete CNC machining services, waiting for you to start manufacturing CNC machining parts. Here are some reasons why you and we have become strategic partners:
1 We are located near the main shipping ports of Shenzhen and Hong Kong, so your parts can be delivered quickly and competitively.
2 We have the world’s advanced CNC lathes and tools imported from the United States and Japan.
3 Our factory has passed the certification of ISO 9001:2015 and processed high quality parts accordance with standard process.
4 You will have a team of skilled technicians, project managers and prototype manufacturers.Part quality can be guaranteed
5 We are able to reduce costs while providing unparalleled accuracy and quality. Compared with Europe and the United States, China has abundant materials and low labor costs, and the cost of prototyping can be as low as 50%.
6 The quality inspection and testing of the raw materials in stock ensures the integrity of our supply chain, so you can get the materials you specify. Our aim is to run fast and produce high quality parts on time.
Difference between turning and milling
1.Different machining method
Generally, Turning machining is special for round, shafts, sleeves, disks, cushions parts. Mainly is horizontal machining. Also large lathe is vertical and other machining forms. There are usually a cutter holder to fix the cutter. And machining form is generally the cutter feeds automatically. Mainly movement is the part rotating.
CNC Turning available for internal holes, threads, and knurling machining (low-speed machining). Also it can be solved with complex rotary ball-shape or round shape feature machining.
Milling machining, machining method is opposite from CNC turning. The main movement is the cutter rotation, while the part is feeds movement. Milling is to fix the blank(rough material) with a high-speed rotating milling cutter to move on the blank(rough material) to cut out the required shapes and features. Traditional milling is common used to simple shapes/features, such as profile and grooves. CNC milling machine can process complex shapes and features.
2.Different (structure) parts.
Turning machining is processing the rotating parts (round shape). Clamped the parts on the main shaft by a three-jaw chuck and rotating with high speed. Then, use a turning cutter to move around the busbar to cut out the part profiles. CNC Turning available for internal holes, threading, and knurling machining (low-speed machining). Also it can be solved with complex rotary ball-shape or round shape feature machining.
Milling machining is fixed the blank(rough material), and with a high-speed rotating milling cutter to move on the blank(rough material) to cut out the required shapes and features. Traditional milling is common used to simple shapes/features, such as profile and grooves. CNC milling machine can process complex shapes and features.
Simply speaking, Turning is moving parts with fixed cutter, while Milling is moving cutter with fixed parts.
